Spool Stage 3 Low Pressure Fuel Pump - DIY Kit [Gen 2 B58]

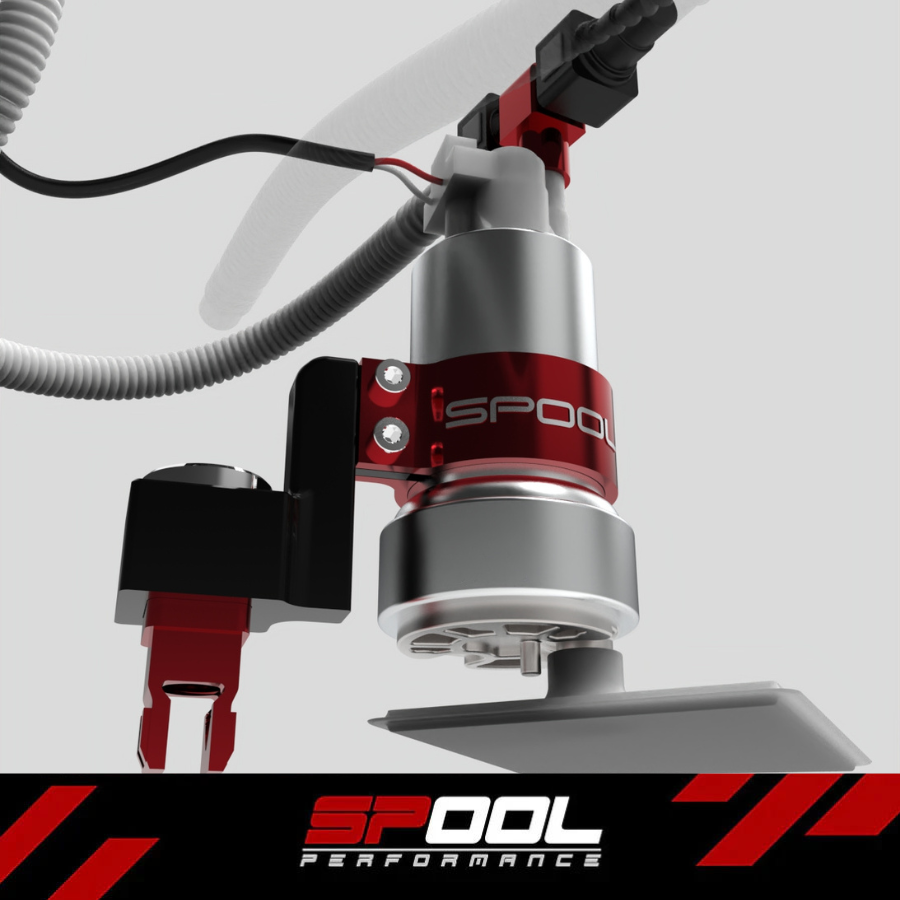

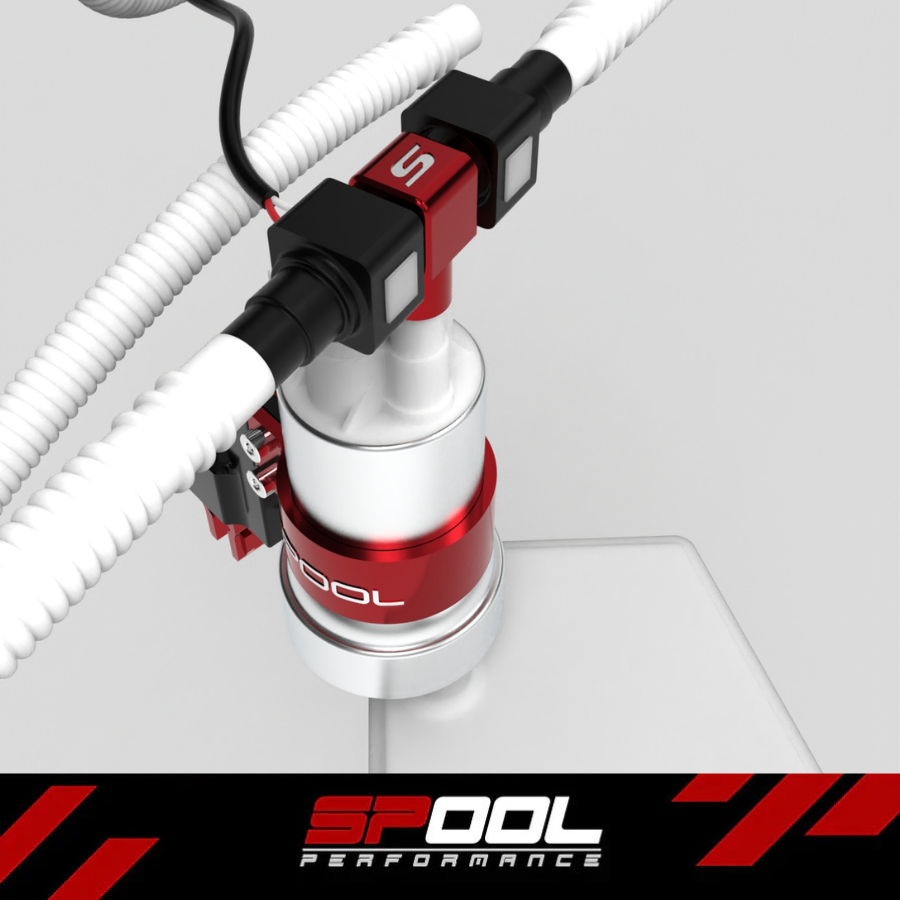

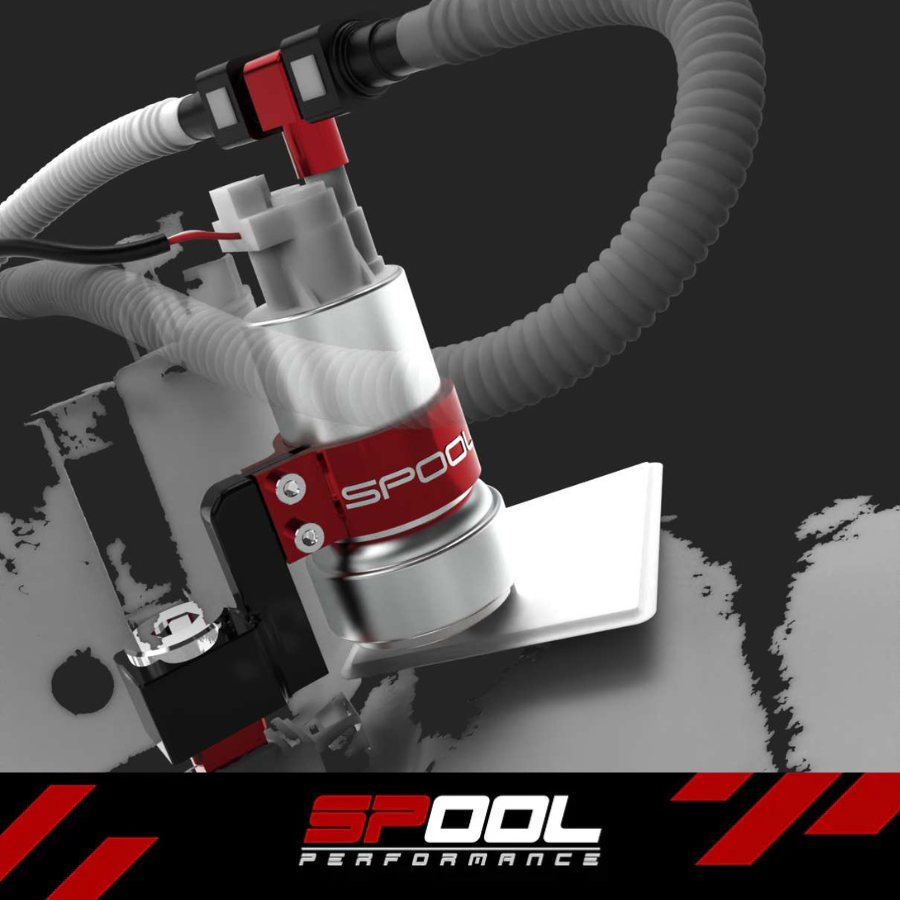

Spool Performance is proud to introduce our new SPOOL BMW B58 G2 DIY LPFP. We realized all the kits on the market are super hard to install and not DIY friendly. We provide a simple install kit with 3 simple attachments, one small red aluminum clip that attaches into OEM tank and one bracket that connects the pump and the clip. Takes less than 20 minutes to install from start to finish.

What separates our kit from others is we give the option to choose how you want the secondary pump activated.

Hobbs Switch Activation: Simple and easy, no ReFlex+ required. We provide a hobbs switch that is bolted on by 1/8 NPT either to your charge pipe or to the intake manifold with the fitting we provide. This will activate the secondary pump at 10psi.

ReFlex Flying Lead Activation: We make this harness to connect into your ReFlex+, this harness is the one that comes with your Motiv ReFlex from Motiv motorsport. You will select this even if you have a Spool Reflex harness or others similar (sub-harness). This is a ground trigger, enabled by your tuner when the pump activates. You will select this harness if you have the original harness that comes with the Motiv box. You will connect this to the white or grey wire on the Motiv (depending on what your tuner wants).

ReFlex Plug N Play Activation: This harness is for people with a full plug n play race harness where the pump is activated with positive trigger and connected onto the ReFlex+ with a deutsch connector. You will not select this unless you have a full replacement harness for the Motiv Reflex.

If you do not select an option you will automatically get the hobbs switch activation setup.

You will have an option for Walbro 450 or 525, if you do not email sales@spoolperformance.us with your order number and which pump you want, you will automatically get a Walbro 450.

Works for all Gen 2 B58!
